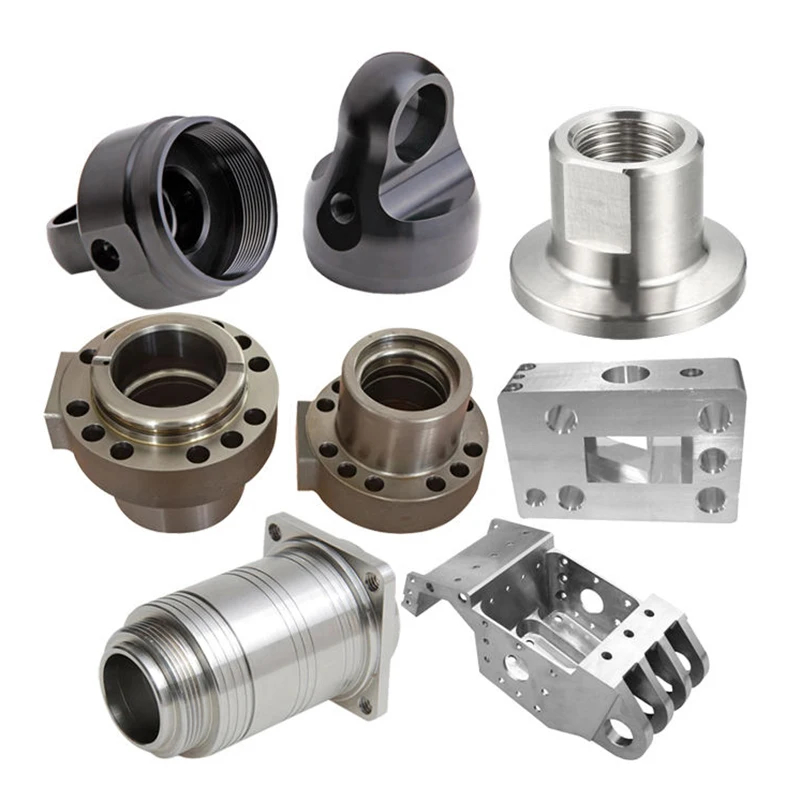

5-Axis CNC Machining Parts for Automotive Industry

Service Progress for 5-Axis CNC Machining Parts in Automotive Industry

(1) Customer Communication: First, the service provider will have an in-depth discussion with the client to understand the specific project requirements, including the part's function, performance demands, batch size, and delivery timeline.

(2) Design File Receipt: The client provides detailed CAD models (usually in STEP, IGES, or x_t formats) and technical drawings.

(3) Design for Manufacturability (DFM) Analysis: The engineering team reviews the client's design to assess its suitability for 5-axis machining. They check the geometry, tolerance requirements, material selection, and surface finish needs, providing optimization suggestions to ensure the part can be manufactured with quality and cost-effectiveness in mind.

2. Process Planning & Programming

(1) Material Selection: Based on the part's function and performance needs, engineers select the appropriate material, such as aluminum alloys (6061, 7075-T6), stainless steel, titanium alloys, or carbon fiber composites.

(2) CAM Programming: Using professional Computer-Aided Manufacturing (CAM) software, engineers create tool paths for the 5-axis machine. This is a critical step, as it involves figuring out the best angles and paths for cutting to minimize setups, improve efficiency, enhance surface finish, and prevent collisions between the tool and the part.

(3) Machining Simulation: Before the actual machining begins, a virtual simulation is performed to model the entire process, checking for potential collision risks or other issues to ensure the program is safe and accurate.

3. Production & Quality Control

(1) Machine Setup: The appropriate raw material blank is secured on the 5-axis machine's worktable, and the cutting tools are mounted.

(2)Part Machining: The 5-axis machine starts and performs the automated machining according to the CAM program. Because a 5-axis machine can complete machining on multiple faces in a single setup, it significantly shortens production time and improves the part's dimensional consistency.

(3) Quality Inspection: After machining is complete, the parts go through a series of strict quality control checks. This often involves using a Coordinate Measuring Machine (CMM) or other high-precision measuring devices to perform a full inspection of critical dimensions, tolerances, and surface quality to ensure every part meets the design specifications.

4. Post-Processing & Delivery

(1) Surface Finishing: Based on client requirements, parts can undergo various post-processing treatments such as anodizing, plating, heat treatment, sandblasting, or polishing to improve corrosion resistance, hardness, or aesthetics.

(2) Cleaning & Packaging: After a thorough cleaning, the parts are professionally packaged to prevent damage during transit.

(3) Delivery: Finally, the qualified finished products are delivered to the client according to the agreed-upon shipping method.

Common Materials in Producing 5-axis CNC Machining Parts

1. Aluminum Alloys

Aluminum alloys are a cornerstone of the automotive industry due to their excellent lightweight and strength properties. Different grades offer a unique balance of performance to meet the needs of specific parts.

Grade: 6061-T6

Characteristics: This is the most common and versatile aluminum alloy. It has great machinability, corrosion resistance, and medium strength. It's easy to weld, heat treat, and anodize for surface finishing.

Automotive Applications: Widely used for chassis components (like suspension control arms), engine mounts, wheel hubs, custom intake manifolds, and prototyping.

Grade: 7075-T6

Characteristics: 7075 is one of the highest-strength aluminum alloys available, with strength comparable to many steels. Its corrosion resistance is not as good as 6061, but it's perfect for applications requiring extremely high strength and hardness.

Automotive Applications: Primarily used for critical structural components in high-performance or racing vehicles, such as high-strength suspension links, brake calipers, and aerospace-grade parts.

2. Stainless Steel

Stainless steel is indispensable for specific automotive applications due to its corrosion resistance and high strength.

Grade: 303 and 304

Characteristics: Grade 303 is a "free-machining" stainless steel, which means it produces shorter, more manageable chips during machining, making it ideal for high-precision CNC work. Grade 304 is more common and offers excellent corrosion resistance but has slightly poorer machinability than 303.

Automotive Applications: 303 is often used for precision mechanical parts like bolts, shafts, and valves. 304 is used for exhaust system components, decorative trim, and fasteners.

Grade: 420

Characteristics: This is a martensitic stainless steel that can be heat-treated to achieve high hardness and wear resistance. Its corrosion resistance is lower than the 300 series.

Automotive Applications: Suitable for engine parts that require high hardness and wear resistance, such as bearings and pistons.

3. Titanium Alloys

Titanium alloys are known for their exceptional strength-to-weight ratio, high-temperature resistance, and corrosion resistance, making them an ideal choice for high-performance cars.

Grade: Ti-6Al-4V (Grade 5)

Characteristics: This is the most common titanium alloy, accounting for over 50% of the world's titanium production. It has extremely high strength, excellent corrosion resistance, and good weldability. However, it's difficult to machine and requires specialized tools and parameters.

Automotive Applications: Widely used in racing car exhaust systems, turbocharger blades, connecting rods, and high-end fasteners to reduce weight and improve performance.

4. Engineering Plastics

Engineering plastics are used in automotive manufacturing for non-structural parts where lightweight properties, corrosion resistance, and insulation are required.

Grade: POM (Polyoxymethylene), also known as Delrin® or Acetal.

Characteristics: It offers high strength, a low coefficient of friction, and excellent wear resistance. It has good dimensional stability, resisting deformation in humid environments, making it ideal for CNC machining.

Automotive Applications: Often used for gears, bushings, fasteners, fuel system components, and dashboard parts.

Grade: ABS (Acrylonitrile Butadiene Styrene)

Characteristics: This is an economical material with good impact resistance and formability. It's easy to paint and electroplate.

Automotive Applications: Great for interior trim, casings, dashboards, and wheel covers.

Why Choose Waltay for 5-Axis CNC Machining Parts?

1. Extensive Experience and Specialization

(1) Aluminum Focus: They explicitly specialize in R&D, production, and sales of aluminum machined parts. This dedicated focus means they likely have deep expertise in handling various aluminum alloys and their unique processing characteristics, which is crucial for precision aluminum plates.

(2) Product Breadth: They list a wide range of aluminum products, including heatsinks, enclosures (power supply, amplifier, inverter, shielding boxes), and general complex CNC milled and turned parts, indicating a strong understanding of electronic industry needs.

2. Comprehensive Manufacturing Capabilities

(1) In-House Tooling: Having in-house tooling machines (5 sets) is a significant advantage. This can lead to:

(2) Competitive Unit Prices: By making tools internally, we can reduce outsourcing costs.

(3) Faster Lead Times: Quicker turnaround on tooling means faster project completion.

(4) Diverse Processes: We offer CNC machining (milling, turning), drilling, grinding, wire EDM, stamping, welding, and various surface finishes like anodizing, powder coating, zinc plating, oil painting, riveting, silkscreen printing, laser engraving, and custom packaging. This broad capability allows for a one-stop solution for complex projects.

3. Focus on Precision and Quality

(1) ISO 9001 Standards: Waltay follow ISO 9001 standards for quality control. This indicates a commitment to a structured quality management system, ensuring consistent processes and quality output.

4. Customer-Centric Services

(1) Rapid Prototyping: Waltay offers rapid prototyping services with an overall lead time of 3-5 days, which is crucial for quick design iterations and product development in electronics.

(2) Design Assistance: We provide "mechanical design assistant, from concept to drawing, provide all-inclusive package." This is highly beneficial for clients who may need support in optimizing their designs for manufacturability (DFM).

(3) Mutual Toolings & Free Samples: We offer "universal enclosures" and "mutual toolings" where customers can modify existing drawings, saving tooling costs and time. We also provide "free samples for R&D, testing" from existing models, which can significantly benefit clients during their development phase.

(4) Quick Quotation:Quotation in 24-48 hours helps clients get pricing information rapidly.

5. Strategic Location

Shenzhen, China: Being located in Shenzhen, Guangdong, China, places Waltay in a major manufacturing hub. This can offer advantages in terms of supply chain access, competitive pricing, and a skilled workforce.

Waltay is specializing in custom CNC machined parts for over 15 years. We are good at making high precision metal and plastic components. We also provide one stop service such as part design, prototypes, mold making, plastic injection and part assembling to better meet customers’ needs. Beside aluminum CNC machined parts, we also provide stainless steel, ABS, PC, PA,PP and POM CNC machined parts which can be widely used in cables, sensors, motors,connectors, etc.
