Multi Functional Precision CNC Milled Aluminum Plate With Symmetrical Perforated Grid

Product Details

Place of Origin: China

Certification: ISO9001, ISO14001

Payment & Shipping Terms

Price: Please contact me

Payment Terms: T/T,Western Union

Supply Ability: 500000pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                Multi Functional Precision Aluminum Plate, Precision Milled Aluminum Plate, CNC Milled Aluminum Plate


Steel:	Stainless Steel	Inspection:	100% Inspection Before Shipment
Drawing Files:	2D/(PDF/CAD)3D(IGES/STEP)	Equipment:	Milling
Cavity:	Single Cavity/ Multi Cavity

Steel:	Stainless Steel
Inspection:	100% Inspection Before Shipment
Drawing Files:	2D/(PDF/CAD)3D(IGES/STEP)
Equipment:	Milling
Cavity:	Single Cavity/ Multi Cavity

Product Description

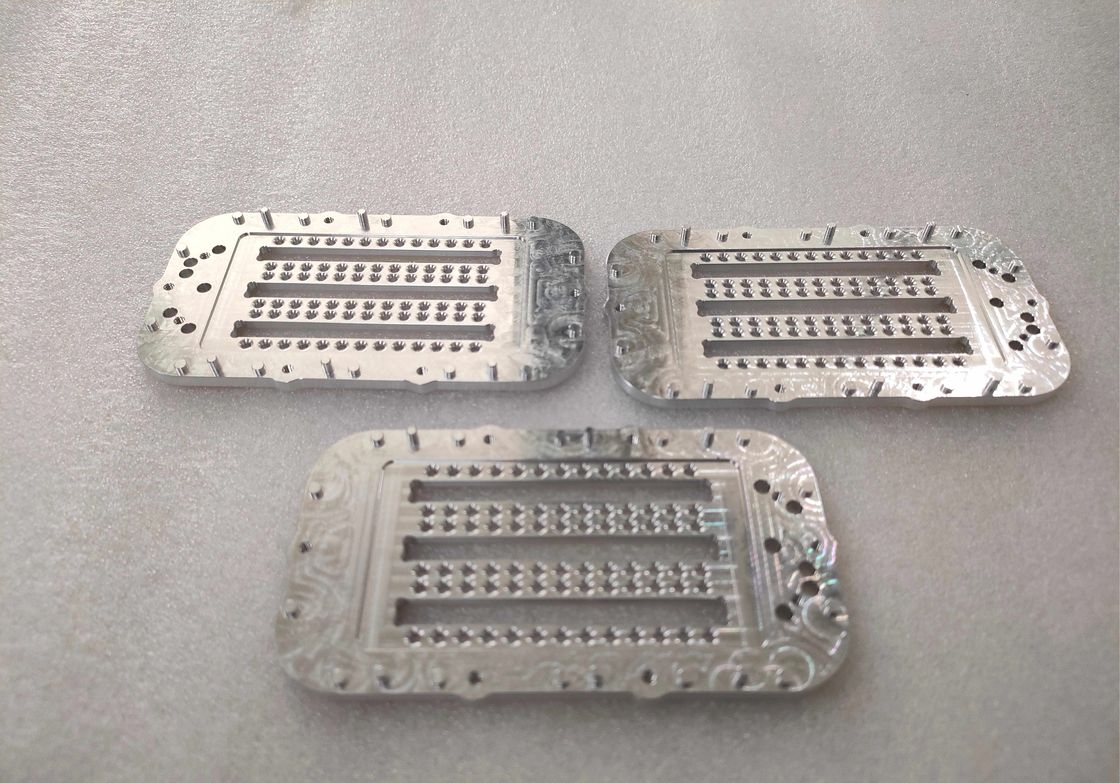

Multi-Functional Precision Aluminum Plate with Symmetrical Perforated Grid

Parameter	Details
Manufacturing Process	CNC milling followed by precision drilling
Material	Aluminum alloy, etc
Surface Finish	Machined surface (custom finishes such as anodizing optional)
Main Features	- High-density hole array - Symmetrical pattern - Flat rectangular base with rounded corners
Hole Type	Through holes with precise spacing; possible countersinks or thread tapping
Applications	- Heat sink base - Microfluidic plate holder - Test fixture base - Sensor interface mounting
Dimensional Accuracy	±0.01mm
Customization	Hole size, pitch, material, and surface finish can be customized
Post-Processing	Deburring, cleaning, optional anodizing, or coating
Typical Size (est.)	Approx. 100mm x 50mm x 5mm (based on image, subject to actual design)
MOQ	Customizable, small batch production available
Inspection	100% visual inspection + dimensional report upon request
