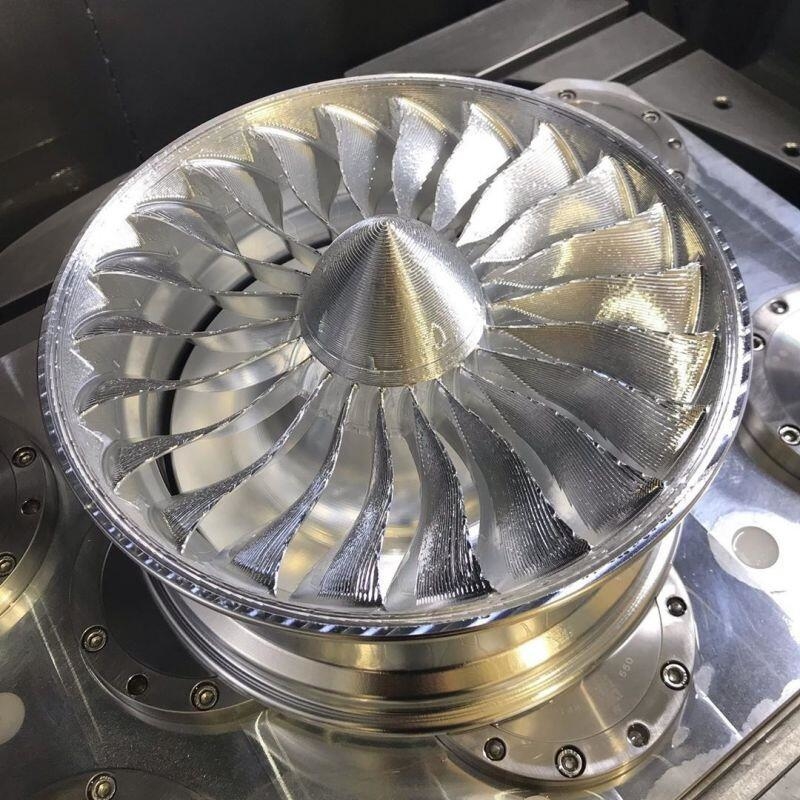

5 Axis CNC Machining Parts CNC Aluminum Parts for Automotive Industry

Manufacturing Service Progress for CNC Aluminum Parts in Automotive Industry:

Requirement Analysis & Project Initiation

(1) Client Communication & Requirement Gathering: The supplier engages in in-depth discussions with the client (typically an automotive manufacturer or Tier 1 supplier) to understand specific project needs, including part function, performance, operating environment, material requirements, dimensional tolerances, surface treatment, and more.

(2) Technical Drawing & CAD Model Review: The client provides detailed 2D technical drawings and 3D CAD models (e.g., STEP, IGES, SolidWorks formats). The supplier reviews these files to ensure their completeness, accuracy, and manufacturability.

(3) Feasibility Analysis & Quotation: Based on client requirements and drawings, the supplier assesses the feasibility of 5-axis CNC machining, including process complexity, required equipment, material costs, and lead time, then provides a detailed quotation and delivery schedule.

Design Optimization & Programming

(1) DFM (Design for Manufacturability) Analysis: The supplier often performs DFM analysis, offering suggestions to the client on design details to optimize part structure, improve machinability, and reduce costs without compromising performance. This might involve adjusting wall thickness, adding chamfers, or avoiding deep, narrow grooves.

(2) Material Selection & Preparation: Based on design requirements, the appropriate aluminum alloy grade (e.g., 6061, 7075) is selected, and raw material of the required dimensions is prepared.

(3) CAM Programming: This is the core of 5-axis CNC machining. We use professional CAM (Computer-Aided Manufacturing) software to generate detailed tool paths and machining code (G-code) from the 3D model. 5-axis machining specifically requires precise programming to leverage its multi-axis capabilities, allowing for the machining of complex surfaces and features, and optimizing cutting angles, feed rates, and spindle speeds to ensure machining efficiency and surface finish.

(4) Simulation & Verification: Before actual machining, CAM software is typically used for machining simulation to simulate tool paths, check for collisions or overcuts, and ensure a safe and error-free machining process.

5-Axis CNC Machining

(1) Equipment Setup & Workholding Fixtures: The aluminum raw material is secured in fixtures on the 5-axis CNC machining center. For complex parts, custom workholding fixtures may need to be designed to ensure stability and accuracy during machining.

(2) Part Machining: The operator uploads the CAM-generated G-code to the 5-axis CNC machining center and initiates the machining process. 5-axis machines can move simultaneously along three linear axes (X, Y, Z) and two rotary axes (A, B, or C), allowing for the completion of multiple faces and angles of complex parts in a single setup, reducing refixturing and improving machining accuracy and efficiency.

(3) Process Monitoring: During machining, the operator continuously monitors machine operation, tool wear, coolant supply, and machining quality, making timely parameter adjustments or tool changes as needed.

 Post-Processing & Surface Treatment

(1) Deburring & Cleaning: After machining, all burrs and sharp edges are removed, and the part is cleaned to remove cutting fluid and debris.

(2) Surface Treatment (Optional): Based on client requirements, various surface treatments are applied to the aluminum parts to enhance their corrosion resistance, wear resistance, aesthetics, or electrical conductivity. Common surface treatments include:

(3) Anodizing: Forms a hard, corrosion-resistant oxide layer, which can be colored.

(4) Sandblasting/Bead Blasting: Achieves a uniform matte finish.

(5) Polishing: Creates a high-gloss surface.

(6) Chromate Conversion Coating: Provides corrosion protection and good electrical conductivity.

(7) Electrophoresis, Painting, etc.

Quality Control & Inspection

(1) Dimensional Accuracy Inspection: High-precision measuring equipment (such as Coordinate Measuring Machines (CMM), calipers, micrometers, height gauges, etc.) are used to comprehensively inspect the dimensions of the machined parts, ensuring all dimensions and tolerances meet drawing requirements.

(2) Surface Quality Inspection: Visual inspection is performed to check for surface defects such as scratches, tool marks, or uneven oxidation.

(3) Material Performance Testing (Optional): Depending on client requirements, material composition analysis or mechanical property testing may be conducted to ensure material compliance.

(4) Reporting & Documentation: All inspection data is recorded, and quality inspection reports are generated to ensure product traceability.

Common Materials in Producing CNC Aluminum Parts for Automotive Industry

Aluminum 6061

(1) Properties: This is arguably the most versatile and widely used aluminum alloy for CNC machining. It offers an excellent balance of properties:

(2) Good Strength-to-Weight Ratio: Provides moderate to high strength, suitable for many structural components without adding excessive weight.

(3) Excellent Machinability: Relatively easy to cut, drill, and form, resulting in good surface finishes.

(4) Good Corrosion Resistance: Forms a protective oxide layer, making it suitable for various environments, including those exposed to moisture.

(5) Weldability: Can be readily welded using common techniques.

(6) Heat Treatable: The T6 temper significantly enhances its strength and hardness.

Automotive Applications: Widely used for chassis components, suspension parts, engine components (e.g., brackets, housings), bicycle frames, valve bodies, and general structural parts where a balance of strength and machinability is needed. It's also suitable for lightweight body production, fenders, hoods, and doors.

Aluminum 7075

Properties: Known as one of the strongest aluminum alloys available, comparable to many steels in strength.

(1) Very High Strength: Excellent tensile and yield strength, making it ideal for high-stress or high-performance applications.

(2) Good Strength-to-Weight Ratio: Extremely lightweight for its strength.

(3) Moderate Machinability: Machinability is good, but it can be more challenging to machine than 6061 due to its hardness.

(4) Lower Corrosion Resistance (than 6061): While generally good, its copper content makes it slightly more susceptible to stress corrosion cracking in certain environments compared to 6061. Protective coatings are often used.

(5) Poor Weldability: Generally not recommended for welding due to susceptibility to cracking.

Automotive Applications: Used in high-performance and racing automotive parts where maximum strength and minimum weight are paramount, such as critical suspension components, chassis reinforcement, high-stress brackets, and specialized engine parts. Also seen in aircraft fittings and missile parts.

Aluminum 2024

Properties: A high-strength alloy with copper as its primary alloying element.

(1) High Strength: Offers excellent strength, especially in tension.

(2) Good Fatigue Resistance: Very important for parts subjected to cyclic loading.

(3) Moderate Machinability: Good workability and machinability.

(4) Poor Corrosion Resistance: More susceptible to corrosion than 6061 or 7075 due to its copper content. Often requires cladding or protective coatings.

(5) Poor Weldability: Challenging to weld due to cracking susceptibility.

Automotive Applications: Due to its high strength and excellent fatigue resistance, it's used in demanding structural components where weight reduction is critical, such as certain body panels, frames, and engine components. It originated in aerospace (aircraft fuselage, wing tension members) and finds similar high-performance niches in automotive.

Aluminum 5052

Properties: A non-heat-treatable alloy known for its excellent corrosion resistance.

(1) Moderate Strength: Strongest of the non-heat-treatable alloys, providing good strength for many applications.

(2) Excellent Corrosion Resistance: Particularly good in marine environments and against saltwater, as it contains no copper.

(3) Excellent Formability and Weldability: Easy to bend, shape, and weld without cracking.

(4) Good Machinability: Relatively easy to machine, though it can yield rougher finishes without proper lubrication.

Automotive Applications: Ideal for fuel tanks, hydraulic lines, body panels (especially those requiring significant forming), brackets, and parts exposed to corrosive environments or requiring good formability without heat treatment.

Other Notable Alloys:

Aluminum 6082: Similar to 6061 but with slightly higher tensile strength and excellent corrosion resistance. Popular in construction (bridges, trusses) and general-purpose applications requiring added toughness. Can be challenging to produce thin walls.

MIC 6: A cast aluminum alloy known for high stability and machinability, often used for parts requiring tight tolerances and dimensional stability over time. Threads may not be as strong as those in 6061.

A380 Aluminum: A common die-casting alloy often used for automotive parts like transmission cases and engine blocks due to its strength and casting properties.

Why choose our company?

Waltay is specializing in custom CNC machined parts for over 15 years. We are good at making high precision metal and plastic components. We also provide one stop service such as part design, prototypes, mold making, plastic injection and part assembling to better meet customers’ needs. Beside aluminum CNC machined parts, we also provide stainless steel, ABS, PC, PA,PP and POM CNC machined parts which can be widely used in cables, sensors, motors,connectors, etc.
